3S Fall Automatic Rising Bollards 430*430*1130mm AC 220V 50Hz Integrated

Guangdong Gaolei Intelligent Technology Co., Ltd.
Contact Now
    Buy cheap 3S Fall Automatic Rising Bollards 430*430*1130mm AC 220V 50Hz Integrated from wholesalers

    Buy cheap 3S Fall Automatic Rising Bollards 430*430*1130mm AC 220V 50Hz Integrated from wholesalers
    • Buy cheap 3S Fall Automatic Rising Bollards 430*430*1130mm AC 220V 50Hz Integrated from wholesalers

    3S Fall Automatic Rising Bollards 430*430*1130mm AC 220V 50Hz Integrated

    Ask Lasest Price
    Brand Name : Gaolei
    Model Number : GL-QM6-219
    Certification : CE
    Price : 799-820
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100
    Delivery Time : 7-14day
    • Product Details
    • Company Profile

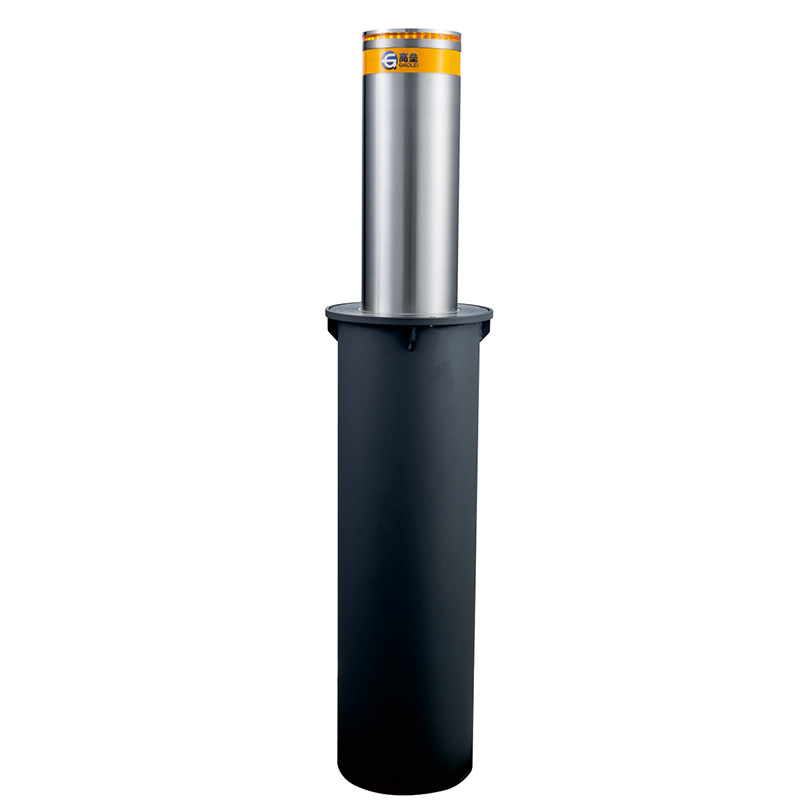

    3S Fall Automatic Rising Bollards 430*430*1130mm AC 220V 50Hz Integrated

    Stainless Steel Remote Control Automatic Road Pile Anticollision Intelligent Blocking Hydraulic Bollard

    Technical Parameter:

    Control SystemIntegrated Electro- Hydraulic
    Passing pressure:≤80- 120 tons container trucks
    Voltage:AC220V 50Hz Integrated
    System Dynamic power350W Integrated
    Rise time :≤3-4S (adjustable)
    fall time :≤3-4S (adjustable)
    Material:304 stainless steel
    Rising height:600mm
    Diameter168mm,219mm,273mm (can be customized)
    External housing size430*430*1130mm/500*500*900mm
    Thickness of bollard6mm,8mm,10mm.12mm,15mm,30mm (optional)
    Working Temperature :-35ºC~75ºC(suitable)
    Storage Environment :10ºC~65ºC, Waterproof and moisture-proof
    Solenoid valve voltage :24V
    Remote control distanceApprox .50m-100m
    Running noise≤60 db
    Waterproof:IP68, double sealed
    Weight:200 KG approx.

    Main Function:

    1.Different thickness of steel is available
    2.Different grade of reflective film is available : High-Intensity Reflective Film , engineering grade sheet
    3.supper grade sheet
    4.Different standard color is available
    5.Customized design and size
    6. Steady and safe due to the Omron plc control system
    7. Speedy and durable due to the use of hydraulic pressure
    8. Lower down the bollards by handle valve in case of power failure or fault of automatic system
    9. Raise up the bollards by handle pump in case of power failure or fault of automatic system
    10. Galvanization is durable and stainless
    11.Optimization of frame structure, high anti-impact capability, high loading capability
    12.Protecting key avoids mis-operation

    3S Fall Automatic Rising Bollards 430*430*1130mm AC 220V 50Hz Integrated3S Fall Automatic Rising Bollards 430*430*1130mm AC 220V 50Hz Integrated3S Fall Automatic Rising Bollards 430*430*1130mm AC 220V 50Hz Integrated3S Fall Automatic Rising Bollards 430*430*1130mm AC 220V 50Hz Integrated3S Fall Automatic Rising Bollards 430*430*1130mm AC 220V 50Hz Integrated
