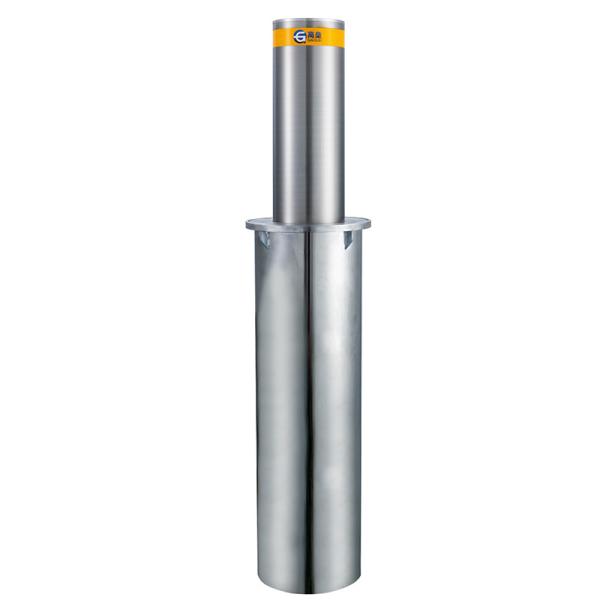

Hydraulic Bollard - Automatic Rising Hydraulic Bollards,Road
Warning Bollards,Anti-Collision Hydraulic Bollards
1. Fast and Smooth
The bollard time is up to 2s(configurable),which is quite valuable.
It adopts the hydraulic drive makes its movement soG and
quite,which just solve the problem of big noise of traditional
pneumatic liGing pump.
2. Agility Control
Control unit adopts PLC programmable controller,which can be
modulated to different function models to meet the different needs of
different users. In addition, its movement stroke is debug timing
design. The user can freely adjust the rising height of bollard
body,effectively saving energy .
3. Unique Structure
The core part of its unique design for the hydraulic unit and
mechanical dynamic,which can effectively pass the mechanical energy
to hydraulic drive unit , which is efficient. The hydraulic unit
achieves helicopter pressure unique design, excellent performance,
in the same field at home and abroad is a rare.
4. Safety and Reliability
Power failure or other emergencies, you can manually fall the
bollard body down to leave a clear channel for vehicle access,which
is stable and reliable.
5. Economic
Green energy, low consumption, low failure rate, longer life, lower
maintenance costs. In addition, the use of non-traditional
mechanism design, installation and maintenance easier and faster.
Brand Name | Gaolei |
Product Type | stainless steel hydraulic rising bollards |
Material | 304 stainless steel |
Weight | Approx 110KG/pcs |
Moving body Height | 600mm (customized) |
Moving body Diameter | 219mm (OEM: 133mm,168mm, 219mm, 273mm etc.) |
Total Height | 1100mm (customized) |
Steel Thickness | 6mm±0.3 (customized ) |
Engine Power | 370W |
Movement Mechanism | Integrated electric-hydraulic drive |
Unit Operating Voltage | Supply voltage: 220V (control voltage 24V) |
Operating Temperature | -45℃ to +75℃ |
Dustproof and waterproof level | IP68 |
Optional Function | Traffic Lamp, Solar light, Hand Pump, Safety Photocell, Reflective
warning tape/sticker |
Installation Distance | Bollard center spacing 1.2-1.5m |
Running time | 2-6S ( adjustable). |
Control mode | Remote control ( 50m - 20m) /button line control/license plate
recognition/Bluetooth sensor/mobile APP remote control (optional). |
Power failure emergency | Reserve battery |
Collision resistance | 1108KJ ( Car speed 65km/h) |
External equipment | Traffic lights/voice prompts to pass (optional) |
Guangdong Gaolei Intelligent Technology Co., Ltd. is located in Nanhai District, Foshan City, Guangdong Province. Our
company is a professional enterprise engaged in the production and
research and development of high-end security equipment and
facilities.The main products of our company include lifting steel
columns, tire killer devices, roadblock machines and other
explosion-proof traffic security products, which have passed the
quality inspection of a "Safety and police electronic product
Quality Inspection Center" of the Ministry of Public Security of
China, and have obtained the relevant qualification and
certificate.
Our production equipment is widely used in public security, armed
police forces, key government units, schools, scenic spots and
commercial centers and other scenes.
Our company has domestic advanced automatic CNC machining center,
laser cutting machine, robot welding, automatic wire drawing
equipment and other large industrial equipment, for the lifting
column industry to provide professional production and processing
services.Our company has seven production workshops, including
profile workshop, accessories workshop, movement workshop and
quality control center, covering an area of 10,000 square
meters.Our company has a professional engineer R&D team, has a
strong product R&D ability and non-standard project production
experience.Our company always focuses on customer needs, we can meet the needs of different customer groups to customize
personalized products, to provide customers with professional
services.
